Register holding all the allowed keywords. More...

#include <ActionRegister.h>

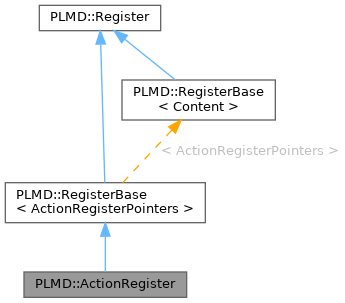

Inheritance diagram for PLMD::ActionRegister:

[legend]

Public Member Functions
ID	add (std::string key, const ActionRegisterPointers &content)
	Register a new class. More...

ID	add (std::string key, creator_pointer cp, keywords_pointer kp)

bool	check (const std::string &key) const
	Verify if a key is present in the register, only considering the default image. More...

bool	check (const std::vector< void * > &images, const std::string &key) const
	Verify if a key is present in the register, accessing to registered images. More...

void	clearStaged () noexcept override
	Clear staged objects. More...

void	completeRegistration (void *handle) override
	complete registration all staged keys will be enabled Should be called after dlopen has been completed correctly. More...

std::unique_ptr< Action >	create (const ActionOptions &ao)
	Create an Action of the type indicated in the options. More...

std::unique_ptr< Action >	create (const std::vector< void * > &images, const ActionOptions &ao)

const ActionRegisterPointers &	get (const std::string &key) const
	Return the content associated to a key in the register, only considering the default image. More...

const ActionRegisterPointers &	get (const std::vector< void * > &images, const std::string &key) const
	Return the content associated to a key in the register, accessing to registerd images. More...

std::vector< std::string >	getActionNames () const

const std::string &	getFullPath (const std::vector< void * > &images, const std::string &key) const
	Return the full path associated to a key in the register, accessing to registerd images. More...

std::vector< std::string >	getKeys () const override
	Get a list of keys Notice that these are the keys in the map, not the plumed keywords! Also notice that this list includes keys from all images, including the textual version of the image void*. More...

std::vector< std::string >	getKeysWithDLHandle (void *handle) const
	Get only keys registered specifically by a given image. More...

bool	getKeywords (const std::string &action, Keywords &keys)
	Retrieve a keywords object for a particular action. More...

void	getKeywords (const std::vector< void * > &images, const std::string &action, Keywords &keys)

bool	printManual (const std::string &action, const bool &vimout, const bool &spellout)
	Print out the keywords for an action in html/vim ready for input into the manual. More...

bool	printTemplate (const std::string &action, bool include_optional)
	Print out a template command for an action. More...

void	remove (ID id)
	Remove a registered keyword. More...

Static Public Member Functions
static void	completeAllRegistrations (void *image)
	Save all staged objects in all registers. More...

static RegistrationLock	registrationLock (const std::string &fullpath)
	return a registration lock More...

Protected Member Functions
virtual std::vector< std::string >	getKeys () const =0
	Get all registered keys. More...

Static Protected Member Functions
static const std::string	getRegisteringFullPath () noexcept
	Return the path of the currently-loading library. More...

static std::string	imageToString (void *image)
	Internal tool to format image addresses. More...

static bool	isDLRegistering () noexcept
	Check if we are in a dlopen section. More...

Protected Attributes
std::shared_mutex	mutex
	Mutex protecting access to map. More...

Private Types
typedef ActionRegisterPointers::creator_pointer	creator_pointer

typedef ActionRegisterPointers::keywords_pointer	keywords_pointer

typedef ActionRegisterPointers	Pointers

Static Private Member Functions
static void	popDLRegistration () noexcept
	Finalize registration - only used by registrationLock() More...

static void	pushDLRegistration (const std::string &fullpath)
	Initialize registration - only used by registrationLock() More...

Private Attributes
std::map< std::string, std::unique_ptr< ContentAndFullPath > >	m
	Main register map. More...

std::map< std::string, std::unique_ptr< ContentAndFullPath > >	staged_m
	Map of staged keys. More...

Related Functions
(Note that these are not member functions.)
ActionRegister &	actionRegister ()
	Function returning a reference to the ActionRegister. More...

#define	PLUMED_REGISTER_ACTION(classname, directive)
	Shortcut for Action registration. More...

Detailed Description

Register holding all the allowed keywords.

This is a register which holds a map between strings (directives) and function pointers. The function pointers are pointing to functions which create an object of the corresponding class given the corresponding options (ActionOptions). There should be only one of there objects allocated. Actions should be registered here at the beginning of execution

Member Typedef Documentation

◆ creator_pointer

typedef ActionRegisterPointers::creator_pointer PLMD::ActionRegister::creator_pointer

private

◆ keywords_pointer

typedef ActionRegisterPointers::keywords_pointer PLMD::ActionRegister::keywords_pointer

private

◆ Pointers

typedef ActionRegisterPointers PLMD::ActionRegister::Pointers

private

Member Function Documentation

◆ add() [1/2]

RegisterBase< ActionRegisterPointers >::ID PLMD::RegisterBase< ActionRegisterPointers >::add	(	std::string	key,
		const ActionRegisterPointers &	content
	)

inherited

Register a new class.

Parameters

key	The name of the directive to be used in the input file
content	The registered content
ID	A returned ID that can be used to remove the directive later

◆ add() [2/2]

ActionRegister::ID PLMD::ActionRegister::add	(	std::string	key,
		creator_pointer	cp,
		keywords_pointer	kp
	)

◆ check() [1/2]

bool PLMD::RegisterBase< ActionRegisterPointers >::check ( const std::string & key ) const

inherited

Verify if a key is present in the register, only considering the default image.

◆ check() [2/2]

bool PLMD::RegisterBase< ActionRegisterPointers >::check	(	const std::vector< void * > &	images,
		const std::string &	key
	)		const

inherited

Verify if a key is present in the register, accessing to registered images.

◆ clearStaged()

void PLMD::RegisterBase< ActionRegisterPointers >::clearStaged

overridevirtualnoexceptinherited

Clear staged objects.

Should be used when leaving the dlopen section to remove any dangling object.

Implements PLMD::Register.

◆ completeAllRegistrations()

void PLMD::Register::completeAllRegistrations ( void * image )

staticinherited

Save all staged objects in all registers.

◆ completeRegistration()

void PLMD::RegisterBase< ActionRegisterPointers >::completeRegistration ( void * handle )

overridevirtualinherited

complete registration all staged keys will be enabled Should be called after dlopen has been completed correctly.

Implements PLMD::Register.

◆ create() [1/2]

std::unique_ptr< Action > PLMD::ActionRegister::create ( const ActionOptions & ao )

Create an Action of the type indicated in the options.

Parameters

ao	object containing information for initialization, such as the full input line, a pointer to PlumedMain, etc

◆ create() [2/2]

std::unique_ptr< Action > PLMD::ActionRegister::create	(	const std::vector< void * > &	images,
		const ActionOptions &	ao
	)

◆ get() [1/2]

const ActionRegisterPointers & PLMD::RegisterBase< ActionRegisterPointers >::get ( const std::string & key ) const

inherited

Return the content associated to a key in the register, only considering the default image.

◆ get() [2/2]

const ActionRegisterPointers & PLMD::RegisterBase< ActionRegisterPointers >::get	(	const std::vector< void * > &	images,
		const std::string &	key
	)		const

inherited

Return the content associated to a key in the register, accessing to registerd images.

◆ getActionNames()

std::vector< std::string > PLMD::ActionRegister::getActionNames ( ) const

◆ getFullPath()

const std::string & PLMD::RegisterBase< ActionRegisterPointers >::getFullPath	(	const std::vector< void * > &	images,
		const std::string &	key
	)		const

inherited

Return the full path associated to a key in the register, accessing to registerd images.

◆ getKeys() [1/2]

virtual std::vector<std::string> PLMD::Register::getKeys ( ) const

protectedpure virtualinherited

Get all registered keys.

These are the keys in the map, not the plumed keywords!

Implemented in PLMD::RegisterBase< Content >.

◆ getKeys() [2/2]

std::vector< std::string > PLMD::RegisterBase< ActionRegisterPointers >::getKeys

overrideinherited

Get a list of keys Notice that these are the keys in the map, not the plumed keywords! Also notice that this list includes keys from all images, including the textual version of the image void*.

◆ getKeysWithDLHandle()

std::vector< std::string > PLMD::Register::getKeysWithDLHandle ( void * handle ) const

inherited

Get only keys registered specifically by a given image.

◆ getKeywords() [1/2]

bool PLMD::ActionRegister::getKeywords	(	const std::string &	action,
		Keywords &	keys
	)

Retrieve a keywords object for a particular action.

◆ getKeywords() [2/2]

void PLMD::ActionRegister::getKeywords	(	const std::vector< void * > &	images,
		const std::string &	action,
		Keywords &	keys
	)

◆ getRegisteringFullPath()

const std::string PLMD::Register::getRegisteringFullPath ( )

staticprotectednoexceptinherited

Return the path of the currently-loading library.

◆ imageToString()

std::string PLMD::Register::imageToString ( void * image )

staticprotectedinherited

Internal tool to format image addresses.

◆ isDLRegistering()

bool PLMD::Register::isDLRegistering ( )

staticprotectednoexceptinherited

Check if we are in a dlopen section.

◆ popDLRegistration()

void PLMD::Register::popDLRegistration ( )

staticprivatenoexceptinherited

Finalize registration - only used by registrationLock()

◆ printManual()

bool PLMD::ActionRegister::printManual	(	const std::string &	action,
		const bool &	vimout,
		const bool &	spellout
	)

Print out the keywords for an action in html/vim ready for input into the manual.

◆ printTemplate()

bool PLMD::ActionRegister::printTemplate	(	const std::string &	action,
		bool	include_optional
	)

Print out a template command for an action.

◆ pushDLRegistration()

void PLMD::Register::pushDLRegistration ( const std::string & fullpath )

staticprivateinherited

Initialize registration - only used by registrationLock()

◆ registrationLock()

Register::RegistrationLock PLMD::Register::registrationLock ( const std::string & fullpath )

staticinherited

return a registration lock

◆ remove()

void PLMD::RegisterBase< ActionRegisterPointers >::remove ( ID id )

inherited

Remove a registered keyword.

Use the ID returned by add().

Friends And Related Function Documentation

◆ actionRegister()

ActionRegister & actionRegister ( )

To avoid problems with order of initialization, this function contains a static ActionRegister which is built the first time the function is called. In this manner, it is always initialized before it's used

◆ PLUMED_REGISTER_ACTION

#define PLUMED_REGISTER_ACTION	(	classname,
		directive
	)

namespace {::PLMD::ActionRegistration<classname> \

PLUMED_CONCATENATE(classname##Registerer,__LINE__)(directive);}

Shortcut for Action registration.

For easier registration, this file also provides a macro PLUMED_REGISTER_ACTION.

Parameters

classname	the name of the class to be registered
directive	a string containing the corresponding directive This macro should be used in the .cpp file of the corresponding class

Member Data Documentation

◆ m

std::map<std::string,std::unique_ptr<ContentAndFullPath> > PLMD::RegisterBase< ActionRegisterPointers >::m

privateinherited

Main register map.

◆ mutex

std::shared_mutex PLMD::Register::mutex

mutableprotectedinherited

Mutex protecting access to map.

◆ staged_m

std::map<std::string,std::unique_ptr<ContentAndFullPath> > PLMD::RegisterBase< ActionRegisterPointers >::staged_m

privateinherited

Map of staged keys.

The documentation for this class was generated from the following files:

core/ActionRegister.h
core/ActionRegister.cpp

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Private Types

Static Private Member Functions

Private Attributes

Related Functions

Detailed Description

Member Typedef Documentation

◆ creator_pointer

◆ keywords_pointer

◆ Pointers

Member Function Documentation

◆ add() [1/2]

◆ add() [2/2]

◆ check() [1/2]

◆ check() [2/2]

◆ clearStaged()

◆ completeAllRegistrations()

◆ completeRegistration()

◆ create() [1/2]

◆ create() [2/2]

◆ get() [1/2]

◆ get() [2/2]

◆ getActionNames()

◆ getFullPath()

◆ getKeys() [1/2]

◆ getKeys() [2/2]

◆ getKeysWithDLHandle()

◆ getKeywords() [1/2]

◆ getKeywords() [2/2]

◆ getRegisteringFullPath()

◆ imageToString()

◆ isDLRegistering()

◆ popDLRegistration()

◆ printManual()

◆ printTemplate()

◆ pushDLRegistration()

◆ registrationLock()

◆ remove()

Friends And Related Function Documentation

◆ actionRegister()

◆ PLUMED_REGISTER_ACTION

Member Data Documentation

◆ m

◆ mutex

◆ staged_m
