Provides the keyword READ More...

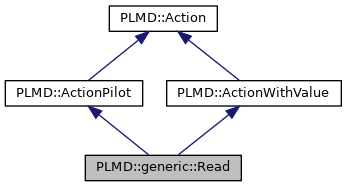

Inheritance diagram for PLMD::generic::Read:

[legend]

Public Types
typedef std::vector< Action * >	Dependencies

Public Member Functions
	Read (const ActionOptions &)

virtual void	activate ()
	Set action to active. More...

void	addComponent (const std::string &name)
	Add a value with a name like label.name. More...

void	addComponentWithDerivatives (const std::string &name)
	Add a value with a name like label.name that has derivatives. More...

void	addDependency (Action *)
	Specify that this Action depends on another one. More...

void	addValue ()
	Add a value with the name label. More...

void	addValueWithDerivatives ()
	Add a value with the name label that has derivatives. More...

void	apply () override
	Apply an Action. More...

virtual void	beforeUpdate ()
	Before Update. More...

void	calculate () override
	Calculate an Action. More...

void	calculateFromPDB (const PDB &)
	Calculate the action given a pdb file as input. More...

virtual void	calculateNumericalDerivatives (ActionWithValue *a=NULL)
	Perform calculation using numerical derivatives N.B. More...

virtual void	checkFieldsAllowed ()

virtual bool	checkNeedsGradients () const
	Check if the action needs gradient. More...

virtual bool	checkNumericalDerivatives () const
	Check if numerical derivatives should be performed. More...

bool	checkNumericalDerivatives () const override
	Check if numerical derivatives should be used. More...

void	checkRead ()
	Check if Action was properly read. More...

bool	checkUpdate () const
	Check if action should be updated. More...

std::string	cite (const std::string &s)
	Cite a paper see PlumedMain::cite. More...

void	clearDependencies ()
	Clear the dependence list for this Action. More...

virtual void	clearDerivatives ()
	Clear the derivatives of values wrt parameters. More...

void	clearInputForces ()
	Clear the forces on the values. More...

virtual void	clearOptions ()

void	componentIsNotPeriodic (const std::string &name)
	Set your value component to have no periodicity. More...

void	componentIsPeriodic (const std::string &name, const std::string &min, const std::string &max)
	Set the value to be periodic with a particular domain. More...

Value *	copyOutput (const std::string &name) const
	Return a pointer to the value with name (this is used to retrieve values in other PLMD::Actions) You should NEVER use this routine to refer to the components of your PLMD::Action. More...

Value *	copyOutput (const unsigned &n) const
	Return a pointer to the value with this number (this is used to retrieve values in other PLMD::Actions) You should NEVER use this routine to refer to the components of your PLMD::Action. More...

virtual void	deactivate ()
	Set action to inactive. More...

virtual bool	doNotCalculateDerivatives () const
	Are we not calculating derivatives. More...

void	error (const std::string &msg) const
	Crash calculation and print documentation. More...

bool	exists (const std::string &name) const
	Check if a value with a particular name is present. More...

void	exit (int c=0)
	Exit with error code c. More...

int	fclose (FILE *fp)
	Closes a file opened with Action::fclose(). More...

void	fflush ()
	Tell to the Action to flush open files. More...

FILE *	fopen (const char path, const char mode)
	Opens a file. More...

std::string	getComponentsList () const
	get a string that contains all the available components More...

std::vector< std::string >	getComponentsVector () const
	get a vector that contains the label for all the components More...

bool	getCPT () const
	Return true if we are doing at a checkpoint step. More...

std::string	getDefaultString () const
	Get the defaults. More...

const Dependencies &	getDependencies () const
	Return dependencies. More...

bool	getExchangeStep () const
	Check if we are on an exchange step. More...

IFile *	getFile ()

std::string	getFilename () const

std::string	getKeyword (const std::string &key)
	Just read one of the keywords and return the whole thing as a string. More...

const std::string &	getLabel () const
	Returns the label. More...

const std::string &	getName () const
	Returns the name. More...

int	getNumberOfComponents () const
	Returns the number of values defined. More...

unsigned	getNumberOfDerivatives () override

double	getOutputQuantity (const std::string &name) const
	Get the value with a specific name (N.B. if there is no such value this returns zero) More...

double	getOutputQuantity (const unsigned j) const
	Get the value of one of the components of the PLMD::Action. More...

bool	getRestart () const
	Return true if we are doing a restart. More...

long long int	getStep () const
	Return the present timestep. More...

int	getStride () const
	Get the stride. More...

double	getTime () const
	Return the present time. More...

double	getTimeStep () const
	Return the timestep. More...

bool	isActive () const
	Check if action is active. More...

bool	isOptionOn (const std::string &s) const
	Check if an option is on. More...

virtual void	lockRequests ()

virtual bool	onStep () const
	Check if the action is active on this step. More...

template<class T >
void	parse (const std::string &key, T &t)
	Parse one keyword as generic type. More...

void	parseFlag (const std::string &key, bool &t)
	Parse one keyword as boolean flag. More...

template<class T >
bool	parseNumbered (const std::string &key, const int no, T &t)
	Parse one numbered keyword as generic type. More...

template<class T >
bool	parseNumberedVector (const std::string &key, const int no, std::vector< T > &t)
	Parse a vector with a number. More...

template<class T >
void	parseVector (const std::string &key, std::vector< T > &t)
	Parse one keyword as std::vector. More...

void	prepare () override
	Prepare an Action for calculation This can be used by Action if they need some special preparation before calculation. More...

virtual void	readAtomsFromPDB (const PDB &)
	This is overwritten in ActionAtomistic so that we can read the atoms from the pdb input file rather than taking them from the MD code. More...

virtual void	runFinalJobs ()
	RunFinalJobs This method is called once at the very end of the calculation. More...

void	setGradientsIfNeeded ()
	Calculate the gradients and store them for all the values (need for projections) More...

void	setNotPeriodic ()
	Set your default value to have no periodicity. More...

virtual void	setOption (const std::string &s)

void	setPeriodic (const std::string &min, const std::string &max)
	Set the value to be periodic with a particular domain. More...

void	setStride (const int &n)
	Set the value of the stride. More...

void	setValue (Value *, double)
	Set the value. More...

void	turnOnDerivatives () override
	Activate the calculation of derivatives. More...

virtual void	unlockRequests ()

void	update () override
	Update. More...

void	useNumericalDerivatives ()
	This forces the class to use numerical derivatives. More...

void	warning (const std::string &msg)
	Issue a warning. More...

Static Public Member Functions
static void	componentsAreNotOptional (Keywords &keys)
	Puts a message into the manual that the components always output. More...

static void	noAnalyticalDerivatives (Keywords &keys)
	Insist that numerical derivatives should always be used for an action and make this fact appear in the manual. More...

static void	registerKeywords (Keywords &keys)

static void	useCustomisableComponents (Keywords &keys)
	The components in the action will depend on the user. More...

Public Attributes
Communicator &	comm

std::set< FILE * >	files

const Keywords &	keywords

Log &	log
	Reference to the log stream. More...

Communicator &	multi_sim_comm

PlumedMain &	plumed
	Reference to main plumed object. More...

Protected Member Functions
Value *	getPntrToComponent (const std::string &name)
	Return a pointer to the value by name. More...

Value *	getPntrToComponent (int i)
	Return a pointer to the component by index. More...

Value *	getPntrToValue ()
	Get a pointer to the default value. More...

void	setValue (const double &d)
	Set the default value (the one without name) More...

Private Member Functions
int	getComponent (const std::string &name) const
	Return the index for the component named name. More...

Private Attributes
bool	active
	Switch to activate Action on this step. More...

Dependencies	after
	Actions on which this Action depends. More...

bool	cloned_file

std::string	defaults
	The set of default arguments that we are using. More...

bool	doCheckPoint

std::string	filename

IFile *	ifile
	Pointer to input file. More...

std::unique_ptr< IFile >	ifile_ptr
	Unique pointer with the same scope as ifile. More...

bool	ignore_forces

bool	ignore_time

std::string	label
	Label of the Action, as set with LABEL= in the plumed.dat file. More...

std::vector< std::string >	line
	Directive line. More...

const std::string	name
	Name of the directive in the plumed.dat file. More...

unsigned	nlinesPerStep

bool	noderiv
	Are we skipping the calculation of the derivatives. More...

bool	numericalDerivatives
	Are we using numerical derivatives to differentiate. More...

std::set< std::string >	options
	Option that you might have enabled. More...

std::vector< std::unique_ptr< Value > >	readvals

int	replica_index

bool	restart

int	stride

double	update_from
	Update only after this time. More...

double	update_until
	Update only until this time. More...

std::vector< std::unique_ptr< Value > >	values
	An array containing the values for this action. More...

Detailed Description

Provides the keyword READ

Member Typedef Documentation

◆ Dependencies

typedef std::vector<Action*> PLMD::Action::Dependencies

inherited

Constructor & Destructor Documentation

◆ Read()

PLMD::generic::Read::Read ( const ActionOptions & ao )

explicit

Member Function Documentation

◆ activate()

void PLMD::Action::activate ( )

virtualinherited

Set action to active.

◆ addComponent()

void PLMD::ActionWithValue::addComponent ( const std::string & name )

inherited

Add a value with a name like label.name.

◆ addComponentWithDerivatives()

void PLMD::ActionWithValue::addComponentWithDerivatives ( const std::string & name )

inherited

Add a value with a name like label.name that has derivatives.

◆ addDependency()

void PLMD::Action::addDependency ( Action * action )

inherited

Specify that this Action depends on another one.

◆ addValue()

void PLMD::ActionWithValue::addValue ( )

inherited

Add a value with the name label.

◆ addValueWithDerivatives()

void PLMD::ActionWithValue::addValueWithDerivatives ( )

inherited

Add a value with the name label that has derivatives.

◆ apply()

void PLMD::generic::Read::apply ( )

inlineoverridevirtual

Apply an Action.

This method is called one time per step. The set of all Actions is applied in backward order.

Implements PLMD::Action.

◆ beforeUpdate()

virtual void PLMD::Action::beforeUpdate ( )

inlinevirtualinherited

Before Update.

This is a special method that is called just before the update() method. It can be used by actions that want to do something irrespectively of the fact that update() is active or not. In other words, this is always called, even when action is not active.

Reimplemented in PLMD::generic::UpdateIf.

◆ calculate()

void PLMD::generic::Read::calculate ( )

overridevirtual

Calculate an Action.

This method is called one or more times per step. The set of all Actions is calculated in forward order.

Implements PLMD::Action.

◆ calculateFromPDB()

void PLMD::Action::calculateFromPDB ( const PDB & pdb )

inherited

Calculate the action given a pdb file as input.

This is used to initialize things like distance from a point in CV map space given a pdb as an input file

◆ calculateNumericalDerivatives()

void PLMD::Action::calculateNumericalDerivatives ( ActionWithValue * a = NULL )

virtualinherited

Perform calculation using numerical derivatives N.B.

only pass an ActionWithValue to this routine if you know exactly what you are doing.

Reimplemented in PLMD::vesselbase::ActionWithAveraging, PLMD::multicolvar::DumpMultiColvar, PLMD::ActionAtomistic, PLMD::multicolvar::MultiColvarBase, PLMD::analysis::AnalysisBase, PLMD::ActionWithArguments, PLMD::mapping::Mapping, PLMD::multicolvar::BridgedMultiColvarFunction, PLMD::vesselbase::ActionWithInputVessel, PLMD::isdb::EMMI, PLMD::isdb::MetainferenceBase, and PLMD::mapping::PCAVars.

◆ checkFieldsAllowed()

virtual void PLMD::ActionWithValue::checkFieldsAllowed ( )

inlinevirtualinherited

Reimplemented in PLMD::colvar::ContactMap, and PLMD::piv::PIV.

◆ checkNeedsGradients()

virtual bool PLMD::Action::checkNeedsGradients ( ) const

inlinevirtualinherited

Check if the action needs gradient.

Reimplemented in PLMD::bias::MetaD, PLMD::bias::PBMetaD, and PLMD::generic::DumpProjections.

◆ checkNumericalDerivatives() [1/2]

virtual bool PLMD::Action::checkNumericalDerivatives ( ) const

inlinevirtualinherited

Check if numerical derivatives should be performed.

Reimplemented in PLMD::ActionWithValue.

◆ checkNumericalDerivatives() [2/2]

bool PLMD::ActionWithValue::checkNumericalDerivatives ( ) const

inlineoverridevirtualinherited

Check if numerical derivatives should be used.

Reimplemented from PLMD::Action.

◆ checkRead()

void PLMD::Action::checkRead ( )

inherited

Check if Action was properly read.

This checks if Action::line is empty. It must be called after a final Action has been initialized

◆ checkUpdate()

bool PLMD::Action::checkUpdate ( ) const

inherited

Check if action should be updated.

◆ cite()

std::string PLMD::Action::cite ( const std::string & s )

inherited

Cite a paper see PlumedMain::cite.

◆ clearDependencies()

void PLMD::Action::clearDependencies ( )

inherited

Clear the dependence list for this Action.

◆ clearDerivatives()

void PLMD::ActionWithValue::clearDerivatives ( )

virtualinherited

Clear the derivatives of values wrt parameters.

Reimplemented in PLMD::multicolvar::BridgedMultiColvarFunction, and PLMD::manyrestraints::ManyRestraintsBase.

◆ clearInputForces()

void PLMD::ActionWithValue::clearInputForces ( )

inherited

Clear the forces on the values.

◆ clearOptions()

void PLMD::Action::clearOptions ( )

virtualinherited

◆ componentIsNotPeriodic()

void PLMD::ActionWithValue::componentIsNotPeriodic ( const std::string & name )

inherited

Set your value component to have no periodicity.

◆ componentIsPeriodic()

void PLMD::ActionWithValue::componentIsPeriodic	(	const std::string &	name,
		const std::string &	min,
		const std::string &	max
	)

inherited

Set the value to be periodic with a particular domain.

◆ componentsAreNotOptional()

void PLMD::ActionWithValue::componentsAreNotOptional ( Keywords & keys )

staticinherited

Puts a message into the manual that the components always output.

◆ copyOutput() [1/2]

Value * PLMD::ActionWithValue::copyOutput ( const std::string & name ) const

inherited

Return a pointer to the value with name (this is used to retrieve values in other PLMD::Actions) You should NEVER use this routine to refer to the components of your PLMD::Action.

Use getPntrToComponent instead.

◆ copyOutput() [2/2]

Value * PLMD::ActionWithValue::copyOutput ( const unsigned & n ) const

inherited

Return a pointer to the value with this number (this is used to retrieve values in other PLMD::Actions) You should NEVER use this routine to refer to the components of your PLMD::Action.

Use getPntrToComponent instead.

◆ deactivate()

void PLMD::Action::deactivate ( )

inlinevirtualinherited

Set action to inactive.

◆ doNotCalculateDerivatives()

bool PLMD::ActionWithValue::doNotCalculateDerivatives ( ) const

inlinevirtualinherited

Are we not calculating derivatives.

Reimplemented in PLMD::multicolvar::MultiColvarBase.

◆ error()

void PLMD::Action::error ( const std::string & msg ) const

inherited

Crash calculation and print documentation.

◆ exists()

bool PLMD::ActionWithValue::exists ( const std::string & name ) const

inherited

Check if a value with a particular name is present.

This is only used in PLMD::ActionWithArguments. You should not use it when manipulating components.

◆ exit()

void PLMD::Action::exit ( int c = 0 )

inherited

Exit with error code c.

◆ fclose()

int PLMD::Action::fclose ( FILE * fp )

inherited

Closes a file opened with Action::fclose().

◆ fflush()

void PLMD::Action::fflush ( )

inherited

Tell to the Action to flush open files.

◆ fopen()

FILE * PLMD::Action::fopen	(	const char *	path,
		const char *	mode
	)

inherited

Opens a file.

This is similar to plain fopen, but with some extra functionality.

When opened for writing, processors other than the one with rank 0 just open /dev/null
PlumedMain::fopen is used, so that other tricks may appear (see PlumedMain::fopen)

◆ getComponent()

int PLMD::ActionWithValue::getComponent ( const std::string & name ) const

privateinherited

Return the index for the component named name.

◆ getComponentsList()

std::string PLMD::ActionWithValue::getComponentsList ( ) const

inherited

get a string that contains all the available components

◆ getComponentsVector()

std::vector< std::string > PLMD::ActionWithValue::getComponentsVector ( ) const

inherited

get a vector that contains the label for all the components

◆ getCPT()

bool PLMD::Action::getCPT ( ) const

inherited

Return true if we are doing at a checkpoint step.

◆ getDefaultString()

std::string PLMD::Action::getDefaultString ( ) const

inlineinherited

Get the defaults.

◆ getDependencies()

const Dependencies& PLMD::Action::getDependencies ( ) const

inlineinherited

Return dependencies.

◆ getExchangeStep()

bool PLMD::Action::getExchangeStep ( ) const

inherited

Check if we are on an exchange step.

◆ getFile()

IFile * PLMD::generic::Read::getFile ( )

◆ getFilename()

std::string PLMD::generic::Read::getFilename ( ) const

◆ getKeyword()

std::string PLMD::Action::getKeyword ( const std::string & key )

inherited

Just read one of the keywords and return the whole thing as a string.

◆ getLabel()

const std::string & PLMD::Action::getLabel ( ) const

inlineinherited

Returns the label.

◆ getName()

const std::string & PLMD::Action::getName ( ) const

inlineinherited

Returns the name.

◆ getNumberOfComponents()

int PLMD::ActionWithValue::getNumberOfComponents ( ) const

inlineinherited

Returns the number of values defined.

◆ getNumberOfDerivatives()

unsigned PLMD::generic::Read::getNumberOfDerivatives ( )

overridevirtual

Implements PLMD::ActionWithValue.

◆ getOutputQuantity() [1/2]

double PLMD::ActionWithValue::getOutputQuantity ( const std::string & name ) const

inlineinherited

Get the value with a specific name (N.B. if there is no such value this returns zero)

◆ getOutputQuantity() [2/2]

double PLMD::ActionWithValue::getOutputQuantity ( const unsigned j ) const

inlineinherited

Get the value of one of the components of the PLMD::Action.

◆ getPntrToComponent() [1/2]

Value * PLMD::ActionWithValue::getPntrToComponent ( const std::string & name )

protectedinherited

Return a pointer to the value by name.

◆ getPntrToComponent() [2/2]

Value * PLMD::ActionWithValue::getPntrToComponent ( int i )

protectedinherited

Return a pointer to the component by index.

◆ getPntrToValue()

Value * PLMD::ActionWithValue::getPntrToValue ( )

protectedinherited

Get a pointer to the default value.

◆ getRestart()

bool PLMD::Action::getRestart ( ) const

inlineinherited

Return true if we are doing a restart.

◆ getStep()

long long int PLMD::Action::getStep ( ) const

inherited

Return the present timestep.

◆ getStride()

int PLMD::ActionPilot::getStride ( ) const

inherited

Get the stride.

◆ getTime()

double PLMD::Action::getTime ( ) const

inherited

Return the present time.

◆ getTimeStep()

double PLMD::Action::getTimeStep ( ) const

inherited

Return the timestep.

◆ isActive()

bool PLMD::Action::isActive ( ) const

inlineinherited

Check if action is active.

◆ isOptionOn()

bool PLMD::Action::isOptionOn ( const std::string & s ) const

inlineinherited

Check if an option is on.

◆ lockRequests()

virtual void PLMD::Action::lockRequests ( )

inlinevirtualinherited

Reimplemented in PLMD::isdb::EMMI, PLMD::isdb::MetainferenceBase, PLMD::mapping::PCAVars, PLMD::ActionAtomistic, PLMD::ActionWithArguments, PLMD::mapping::Mapping, PLMD::vesselbase::ActionWithAveraging, and PLMD::analysis::AnalysisBase.

◆ noAnalyticalDerivatives()

void PLMD::ActionWithValue::noAnalyticalDerivatives ( Keywords & keys )

staticinherited

Insist that numerical derivatives should always be used for an action and make this fact appear in the manual.

◆ onStep()

bool PLMD::ActionPilot::onStep ( ) const

virtualinherited

Check if the action is active on this step.

Reimplemented in PLMD::gridtools::ConvertToFES.

◆ parse()

template<class T >

void PLMD::Action::parse	(	const std::string &	key,
		T &	t
	)

inherited

Parse one keyword as generic type.

◆ parseFlag()

void PLMD::Action::parseFlag	(	const std::string &	key,
		bool &	t
	)

inherited

Parse one keyword as boolean flag.

◆ parseNumbered()

template<class T >

bool PLMD::Action::parseNumbered	(	const std::string &	key,
		const int	no,
		T &	t
	)

inherited

Parse one numbered keyword as generic type.

◆ parseNumberedVector()

template<class T >

bool PLMD::Action::parseNumberedVector	(	const std::string &	key,
		const int	no,
		std::vector< T > &	t
	)

inherited

Parse a vector with a number.

◆ parseVector()

template<class T >

void PLMD::Action::parseVector	(	const std::string &	key,
		std::vector< T > &	t
	)

inherited

Parse one keyword as std::vector.

◆ prepare()

void PLMD::generic::Read::prepare ( )

overridevirtual

Prepare an Action for calculation This can be used by Action if they need some special preparation before calculation.

Typical case is for collective variables which would like to change their list of requested atoms. By default (if not overridden) does nothing.

Reimplemented from PLMD::Action.

◆ readAtomsFromPDB()

virtual void PLMD::Action::readAtomsFromPDB ( const PDB & )

inlinevirtualinherited

This is overwritten in ActionAtomistic so that we can read the atoms from the pdb input file rather than taking them from the MD code.

Reimplemented in PLMD::ActionAtomistic.

◆ registerKeywords()

void PLMD::generic::Read::registerKeywords ( Keywords & keys )

static

◆ runFinalJobs()

virtual void PLMD::Action::runFinalJobs ( )

inlinevirtualinherited

RunFinalJobs This method is called once at the very end of the calculation.

The set of all Actions in run for the final time in forward order.

Reimplemented in PLMD::vesselbase::ActionWithAveraging, PLMD::analysis::AnalysisBase, PLMD::gridtools::ConvertToFES, PLMD::analysis::ReadDissimilarityMatrix, and PLMD::gridtools::GridPrintingBase.

◆ setGradientsIfNeeded()

void PLMD::ActionWithValue::setGradientsIfNeeded ( )

inherited

Calculate the gradients and store them for all the values (need for projections)

◆ setNotPeriodic()

void PLMD::ActionWithValue::setNotPeriodic ( )

inherited

Set your default value to have no periodicity.

◆ setOption()

void PLMD::Action::setOption ( const std::string & s )

virtualinherited

◆ setPeriodic()

void PLMD::ActionWithValue::setPeriodic	(	const std::string &	min,
		const std::string &	max
	)

inherited

Set the value to be periodic with a particular domain.

◆ setStride()

void PLMD::ActionPilot::setStride ( const int & n )

inherited

Set the value of the stride.

◆ setValue() [1/2]

void PLMD::ActionWithValue::setValue ( const double & d )

inlineprotectedinherited

Set the default value (the one without name)

◆ setValue() [2/2]

void PLMD::ActionWithValue::setValue	(	Value *	,
		double
	)

inherited

Set the value.

◆ turnOnDerivatives()

void PLMD::generic::Read::turnOnDerivatives ( )

overridevirtual

Activate the calculation of derivatives.

Reimplemented from PLMD::ActionWithValue.

◆ unlockRequests()

virtual void PLMD::Action::unlockRequests ( )

inlinevirtualinherited

Reimplemented in PLMD::isdb::EMMI, PLMD::isdb::MetainferenceBase, PLMD::mapping::PCAVars, PLMD::ActionAtomistic, PLMD::ActionWithArguments, PLMD::mapping::Mapping, PLMD::vesselbase::ActionWithAveraging, and PLMD::analysis::AnalysisBase.

◆ update()

void PLMD::generic::Read::update ( )

overridevirtual

Update.

This method is called one time per step. The set of all Actions is updated in forward order.

Reimplemented from PLMD::Action.

◆ useCustomisableComponents()

void PLMD::ActionWithValue::useCustomisableComponents ( Keywords & keys )

staticinherited

The components in the action will depend on the user.

◆ useNumericalDerivatives()

void PLMD::ActionWithValue::useNumericalDerivatives ( )

inlineinherited

This forces the class to use numerical derivatives.

◆ warning()

void PLMD::Action::warning ( const std::string & msg )

inherited

Issue a warning.

Member Data Documentation

◆ active

bool PLMD::Action::active

privateinherited

Switch to activate Action on this step.

◆ after

Dependencies PLMD::Action::after

privateinherited

Actions on which this Action depends.

◆ cloned_file

bool PLMD::generic::Read::cloned_file

private

◆ comm

Communicator& PLMD::Action::comm

inherited

◆ defaults

std::string PLMD::Action::defaults

privateinherited

The set of default arguments that we are using.

◆ doCheckPoint

bool PLMD::Action::doCheckPoint

privateinherited

◆ filename

std::string PLMD::generic::Read::filename

private

◆ files

std::set<FILE*> PLMD::Action::files

inherited

◆ ifile

IFile* PLMD::generic::Read::ifile

private

Pointer to input file.

It is either pointing to the content of ifile_ptr or to the file it is cloned from.

◆ ifile_ptr

std::unique_ptr<IFile> PLMD::generic::Read::ifile_ptr

private

Unique pointer with the same scope as ifile.

◆ ignore_forces

bool PLMD::generic::Read::ignore_forces

private

◆ ignore_time

bool PLMD::generic::Read::ignore_time

private

◆ keywords

const Keywords& PLMD::Action::keywords

inherited

◆ label

std::string PLMD::Action::label

privateinherited

Label of the Action, as set with LABEL= in the plumed.dat file.

◆ line

std::vector<std::string> PLMD::Action::line

privateinherited

Directive line.

This line is progressively erased during Action construction so as to check if all the present keywords are correct.

◆ log

Log& PLMD::Action::log

inherited

Reference to the log stream.

◆ multi_sim_comm

Communicator& PLMD::Action::multi_sim_comm

inherited

◆ name

const std::string PLMD::Action::name

privateinherited

Name of the directive in the plumed.dat file.

◆ nlinesPerStep

unsigned PLMD::generic::Read::nlinesPerStep

private

◆ noderiv

bool PLMD::ActionWithValue::noderiv

privateinherited

Are we skipping the calculation of the derivatives.

◆ numericalDerivatives

bool PLMD::ActionWithValue::numericalDerivatives

privateinherited

Are we using numerical derivatives to differentiate.

◆ options

std::set<std::string> PLMD::Action::options

privateinherited

Option that you might have enabled.

◆ plumed

PlumedMain& PLMD::Action::plumed

inherited

Reference to main plumed object.

◆ readvals

std::vector<std::unique_ptr<Value> > PLMD::generic::Read::readvals

private

◆ replica_index

int PLMD::Action::replica_index

privateinherited

◆ restart

bool PLMD::Action::restart

privateinherited

◆ stride

int PLMD::ActionPilot::stride

privateinherited

◆ update_from

double PLMD::Action::update_from

privateinherited

Update only after this time.

◆ update_until

double PLMD::Action::update_until

privateinherited

Update only until this time.

◆ values

std::vector<std::unique_ptr<Value> > PLMD::ActionWithValue::values

privateinherited

An array containing the values for this action.

The documentation for this class was generated from the following file:

generic/Read.cpp

Public Types

Public Member Functions

Static Public Member Functions

Public Attributes

Protected Member Functions

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

◆ Dependencies

Constructor & Destructor Documentation

◆ Read()

Member Function Documentation

◆ activate()

◆ addComponent()

◆ addComponentWithDerivatives()

◆ addDependency()

◆ addValue()

◆ addValueWithDerivatives()

◆ apply()

◆ beforeUpdate()

◆ calculate()

◆ calculateFromPDB()

◆ calculateNumericalDerivatives()

◆ checkFieldsAllowed()

◆ checkNeedsGradients()

◆ checkNumericalDerivatives() [1/2]

◆ checkNumericalDerivatives() [2/2]

◆ checkRead()

◆ checkUpdate()

◆ cite()

◆ clearDependencies()

◆ clearDerivatives()

◆ clearInputForces()

◆ clearOptions()

◆ componentIsNotPeriodic()

◆ componentIsPeriodic()

◆ componentsAreNotOptional()

◆ copyOutput() [1/2]

◆ copyOutput() [2/2]

◆ deactivate()

◆ doNotCalculateDerivatives()

◆ error()

◆ exists()

◆ exit()

◆ fclose()

◆ fflush()

◆ fopen()

◆ getComponent()

◆ getComponentsList()

◆ getComponentsVector()

◆ getCPT()

◆ getDefaultString()

◆ getDependencies()

◆ getExchangeStep()

◆ getFile()

◆ getFilename()

◆ getKeyword()

◆ getLabel()

◆ getName()

◆ getNumberOfComponents()

◆ getNumberOfDerivatives()

◆ getOutputQuantity() [1/2]

◆ getOutputQuantity() [2/2]

◆ getPntrToComponent() [1/2]

◆ getPntrToComponent() [2/2]

◆ getPntrToValue()

◆ getRestart()

◆ getStep()

◆ getStride()

◆ getTime()

◆ getTimeStep()

◆ isActive()

◆ isOptionOn()

◆ lockRequests()

◆ noAnalyticalDerivatives()

◆ onStep()

◆ parse()

◆ parseFlag()

◆ parseNumbered()
