Class implementing fixed size matrices of doubles. More...

#include <Tensor.h>

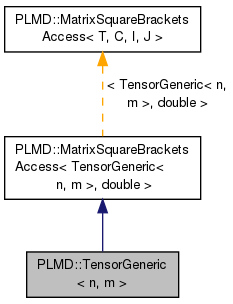

Inheritance diagram for PLMD::TensorGeneric< n, m >:

Public Member Functions
	TensorGeneric ()
	initialize the tensor to zero More...

	TensorGeneric (const VectorGeneric< n > &v1, const VectorGeneric< m > &v2)
	initialize a tensor as an external product of two Vector More...

	TensorGeneric (double, double, double, double)
	initialize a tensor with 4 values, in standard C order More...

	TensorGeneric (double, double, double, double, double, double, double, double, double)
	initialize a tensor with 9 values, in standard C order More...

void	zero ()
	set it to zero More...

double &	operator() (unsigned i, unsigned j)
	access element More...

const double &	operator() (unsigned i, unsigned j) const
	access element More...

TensorGeneric &	operator+= (const TensorGeneric< n, m > &b)
	increment More...

TensorGeneric &	operator-= (const TensorGeneric< n, m > &b)
	decrement More...

TensorGeneric &	operator*= (double)
	multiply More...

TensorGeneric &	operator/= (double)
	divide More...

TensorGeneric	operator+ () const
	return +t More...

TensorGeneric	operator- () const
	return -t More...

TensorGeneric &	setCol (unsigned j, const VectorGeneric< n > &c)
	set j-th column More...

TensorGeneric &	setRow (unsigned i, const VectorGeneric< m > &r)
	set i-th row More...

VectorGeneric< n >	getCol (unsigned j) const
	get j-th column More...

VectorGeneric< m >	getRow (unsigned i) const
	get i-th row More...

double	determinant () const
	returns the determinant More...

TensorGeneric	inverse () const
	return the matrix inverse More...

TensorGeneric< m, n >	transpose () const
	return the transpose matrix More...

template<>
	TensorGeneric (double d00, double d01, double d10, double d11)

template<>
	TensorGeneric (double d00, double d01, double d02, double d10, double d11, double d12, double d20, double d21, double d22)

template<>
double	determinant () const

template<>
TensorGeneric< 3, 3 >	inverse () const

Row	operator[] (I i)
	access element (with [][] syntax) More...

Const_row	operator[] (I i) const
	access element (with [][] syntax) More...

Static Public Member Functions
static TensorGeneric< n, n >	identity ()
	return an identity tensor More...

Private Attributes
double	d [n *m]

Friends
template<unsigned n_, unsigned m_>
TensorGeneric< n_, m_ >	operator+ (const TensorGeneric< n_, m_ > &, const TensorGeneric< n_, m_ > &)
	return t1+t2 More...

template<unsigned n_, unsigned m_>
TensorGeneric< n_, m_ >	operator- (const TensorGeneric< n_, m_ > &, const TensorGeneric< n_, m_ > &)
	return t1+t2 More...

template<unsigned n_, unsigned m_>
TensorGeneric< n_, m_ >	operator* (double, const TensorGeneric< n_, m_ > &)
	scale the tensor by a factor s More...

template<unsigned n_, unsigned m_>
TensorGeneric< n_, m_ >	operator* (const TensorGeneric< n_, m_ > &, double s)
	scale the tensor by a factor s More...

template<unsigned n_, unsigned m_>
TensorGeneric< n_, m_ >	operator/ (const TensorGeneric< n_, m_ > &, double s)
	scale the tensor by a factor 1/s More...

template<unsigned n_, unsigned m_, unsigned l_>
TensorGeneric< n_, l_ >	matmul (const TensorGeneric< n_, m_ > &, const TensorGeneric< m_, l_ > &)
	matrix-matrix multiplication More...

template<unsigned n_, unsigned m_>
VectorGeneric< n_ >	matmul (const TensorGeneric< n_, m_ > &, const VectorGeneric< m_ > &)
	matrix-vector multiplication More...

template<unsigned n_, unsigned m_>
VectorGeneric< n_ >	matmul (const VectorGeneric< m_ > &, const TensorGeneric< m_, n_ > &)
	vector-matrix multiplication More...

template<unsigned n_, unsigned m_, unsigned l_, unsigned i_>
TensorGeneric< n_, i_ >	matmul (const TensorGeneric< n_, m_ > &, const TensorGeneric< m_, l_ > &, const TensorGeneric< l_, i_ > &)
	matrix-matrix-matrix multiplication More...

template<unsigned n_, unsigned m_, unsigned l_>
VectorGeneric< n_ >	matmul (const TensorGeneric< n_, m_ > &, const TensorGeneric< m_, l_ > &, const VectorGeneric< l_ > &)
	matrix-matrix-vector multiplication More...

template<unsigned n_, unsigned m_, unsigned l_>
VectorGeneric< l_ >	matmul (const VectorGeneric< n_ > &, const TensorGeneric< n_, m_ > &, const TensorGeneric< m_, l_ > &)
	vector-matrix-matrix multiplication More...

double	determinant (const TensorGeneric< 3, 3 > &)
	returns the determinant of a tensor More...

TensorGeneric< 3, 3 >	inverse (const TensorGeneric< 3, 3 > &)
	returns the inverse of a tensor (same as inverse()) More...

template<unsigned n_, unsigned m_>
TensorGeneric< n_, m_ >	transpose (const TensorGeneric< m_, n_ > &)
	returns the transpose of a tensor (same as transpose()) More...

template<unsigned n_, unsigned m_>
TensorGeneric< n_, m_ >	extProduct (const VectorGeneric< n > &, const VectorGeneric< m > &)
	returns the transpose of a tensor (same as TensorGeneric(const VectorGeneric&,const VectorGeneric&)) More...

TensorGeneric< 3, 3 >	dcrossDv1 (const VectorGeneric< 3 > &, const VectorGeneric< 3 > &)

TensorGeneric< 3, 3 >	dcrossDv2 (const VectorGeneric< 3 > &, const VectorGeneric< 3 > &)

Detailed Description

template<unsigned n, unsigned m>
class PLMD::TensorGeneric< n, m >

Class implementing fixed size matrices of doubles.

Template Parameters

n	The number rows
m	The number columns

This class implements a matrix of doubles with size fixed at compile time. It is useful for small fixed size objects (e.g. 3x3 tensors) as it does not waste space to store the vector size. Moreover, as the compiler knows the size, it can be completely opimized inline. Matrix elements are initialized to zero by default. Notice that this means that constructor is a bit slow. This point might change in future if we find performance issues. It takes advantage of MatrixSquareBracketsAccess to provide both () and [] syntax for access. Several functions are declared as friends even if not necessary so as to properly appear in Doxygen documentation.

Aliases are defined to simplify common declarations (Tensor, Tensor2d, Tensor3d, Tensor4d). Also notice that some operations are only available for 3x3 tensors.

Example of usage

#include "Tensor.h"

using namespace PLMD;

int main(){
  Tensor a;
  TensorGeneric<3,2> b;
  TensorGeneric<3,2> c=matmul(a,b);
  return 0;
}

Constructor & Destructor Documentation

template<unsigned n, unsigned m>

PLMD::TensorGeneric< n, m >::TensorGeneric ( )

initialize the tensor to zero

template<unsigned n, unsigned m>

PLMD::TensorGeneric< n, m >::TensorGeneric	(	const VectorGeneric< n > &	v1,
		const VectorGeneric< m > &	v2
	)

initialize a tensor as an external product of two Vector

template<unsigned n, unsigned m>

PLMD::TensorGeneric< n, m >::TensorGeneric	(	double	,
		double	,
		double	,
		double
	)

initialize a tensor with 4 values, in standard C order

template<unsigned n, unsigned m>

PLMD::TensorGeneric< n, m >::TensorGeneric	(	double	,
		double	,
		double	,
		double	,
		double	,
		double	,
		double	,
		double	,
		double
	)

initialize a tensor with 9 values, in standard C order

template<>

PLMD::TensorGeneric< 2, 2 >::TensorGeneric	(	double	d00,
		double	d01,
		double	d10,
		double	d11
	)

inline

template<>

PLMD::TensorGeneric< 3, 3 >::TensorGeneric	(	double	d00,
		double	d01,
		double	d02,
		double	d10,
		double	d11,
		double	d12,
		double	d20,
		double	d21,
		double	d22
	)

inline

Member Function Documentation

template<unsigned n, unsigned m>

double PLMD::TensorGeneric< n, m >::determinant ( ) const

returns the determinant

template<>

double PLMD::TensorGeneric< 3, 3 >::determinant ( ) const

inline

template<unsigned n, unsigned m>

VectorGeneric< n > PLMD::TensorGeneric< n, m >::getCol ( unsigned j ) const

get j-th column

template<unsigned n, unsigned m>

VectorGeneric< m > PLMD::TensorGeneric< n, m >::getRow ( unsigned i ) const

get i-th row

template<unsigned n, unsigned m>

TensorGeneric< n, n > PLMD::TensorGeneric< n, m >::identity ( )

inlinestatic

return an identity tensor

template<unsigned n, unsigned m>

TensorGeneric PLMD::TensorGeneric< n, m >::inverse ( ) const

return the matrix inverse

template<>

TensorGeneric< 3, 3 > PLMD::TensorGeneric< 3, 3 >::inverse ( ) const

inline

template<unsigned n, unsigned m>

double & PLMD::TensorGeneric< n, m >::operator()	(	unsigned	i,
		unsigned	j
	)

access element

template<unsigned n, unsigned m>

const double & PLMD::TensorGeneric< n, m >::operator()	(	unsigned	i,
		unsigned	j
	)		const

access element

template<unsigned n, unsigned m>

TensorGeneric< n, m > & PLMD::TensorGeneric< n, m >::operator*= ( double s )

multiply

template<unsigned n, unsigned m>

TensorGeneric< n, m > PLMD::TensorGeneric< n, m >::operator+ ( ) const

return +t

template<unsigned n, unsigned m>

TensorGeneric< n, m > & PLMD::TensorGeneric< n, m >::operator+= ( const TensorGeneric< n, m > & b )

increment

template<unsigned n, unsigned m>

TensorGeneric< n, m > PLMD::TensorGeneric< n, m >::operator- ( ) const

return -t

template<unsigned n, unsigned m>

TensorGeneric< n, m > & PLMD::TensorGeneric< n, m >::operator-= ( const TensorGeneric< n, m > & b )

decrement

template<unsigned n, unsigned m>

TensorGeneric< n, m > & PLMD::TensorGeneric< n, m >::operator/= ( double s )

divide

Row PLMD::MatrixSquareBracketsAccess< TensorGeneric< n, m > , double , I, J >::operator[] ( I i )

inherited

access element (with [][] syntax)

Const_row PLMD::MatrixSquareBracketsAccess< TensorGeneric< n, m > , double , I, J >::operator[] ( I i ) const

inherited

access element (with [][] syntax)

template<unsigned n, unsigned m>

TensorGeneric< n, m > & PLMD::TensorGeneric< n, m >::setCol	(	unsigned	j,
		const VectorGeneric< n > &	c
	)

set j-th column

template<unsigned n, unsigned m>

TensorGeneric< n, m > & PLMD::TensorGeneric< n, m >::setRow	(	unsigned	i,
		const VectorGeneric< m > &	r
	)

set i-th row

template<unsigned n, unsigned m>

TensorGeneric< m, n > PLMD::TensorGeneric< n, m >::transpose ( ) const

return the transpose matrix

template<unsigned n, unsigned m>

void PLMD::TensorGeneric< n, m >::zero ( )

set it to zero

Friends And Related Function Documentation

template<unsigned n, unsigned m>

TensorGeneric<3,3> dcrossDv1	(	const VectorGeneric< 3 > &	v1,
		const VectorGeneric< 3 > &	v2
	)

friend

template<unsigned n, unsigned m>

TensorGeneric<3,3> dcrossDv2	(	const VectorGeneric< 3 > &	v1,
		const VectorGeneric< 3 > &	v2
	)

friend

template<unsigned n, unsigned m>

double determinant ( const TensorGeneric< 3, 3 > & t )

friend

returns the determinant of a tensor

template<unsigned n, unsigned m>

template<unsigned n_, unsigned m_>

TensorGeneric<n_,m_> extProduct	(	const VectorGeneric< n > &	v1,
		const VectorGeneric< m > &	v2
	)

friend

returns the transpose of a tensor (same as TensorGeneric(const VectorGeneric&,const VectorGeneric&))

template<unsigned n, unsigned m>

TensorGeneric<3,3> inverse ( const TensorGeneric< 3, 3 > & t )

friend

returns the inverse of a tensor (same as inverse())

template<unsigned n, unsigned m>

template<unsigned n_, unsigned m_, unsigned l_>

TensorGeneric<n_,l_> matmul	(	const TensorGeneric< n_, m_ > &	,
		const TensorGeneric< m_, l_ > &
	)

friend

matrix-matrix multiplication

template<unsigned n, unsigned m>

template<unsigned n_, unsigned m_>

VectorGeneric<n_> matmul	(	const TensorGeneric< n_, m_ > &	,
		const VectorGeneric< m_ > &
	)

friend

matrix-vector multiplication

template<unsigned n, unsigned m>

template<unsigned n_, unsigned m_>

VectorGeneric<n_> matmul	(	const VectorGeneric< m_ > &	,
		const TensorGeneric< m_, n_ > &
	)

friend

vector-matrix multiplication

template<unsigned n, unsigned m>

template<unsigned n_, unsigned m_, unsigned l_, unsigned i_>

TensorGeneric<n_,i_> matmul	(	const TensorGeneric< n_, m_ > &	,
		const TensorGeneric< m_, l_ > &	,
		const TensorGeneric< l_, i_ > &
	)

friend

matrix-matrix-matrix multiplication

template<unsigned n, unsigned m>

template<unsigned n_, unsigned m_, unsigned l_>

VectorGeneric<n_> matmul	(	const TensorGeneric< n_, m_ > &	,
		const TensorGeneric< m_, l_ > &	,
		const VectorGeneric< l_ > &
	)

friend

matrix-matrix-vector multiplication

template<unsigned n, unsigned m>

template<unsigned n_, unsigned m_, unsigned l_>

VectorGeneric<l_> matmul	(	const VectorGeneric< n_ > &	,
		const TensorGeneric< n_, m_ > &	,
		const TensorGeneric< m_, l_ > &
	)

friend

vector-matrix-matrix multiplication

template<unsigned n, unsigned m>

template<unsigned n_, unsigned m_>

TensorGeneric<n_,m_> operator*	(	double	,
		const TensorGeneric< n_, m_ > &
	)

friend

scale the tensor by a factor s

template<unsigned n, unsigned m>

template<unsigned n_, unsigned m_>

TensorGeneric<n_,m_> operator*	(	const TensorGeneric< n_, m_ > &	,
		double	s
	)

friend

scale the tensor by a factor s

template<unsigned n, unsigned m>

template<unsigned n_, unsigned m_>

TensorGeneric<n_,m_> operator+	(	const TensorGeneric< n_, m_ > &	,
		const TensorGeneric< n_, m_ > &
	)

friend

return t1+t2

template<unsigned n, unsigned m>

template<unsigned n_, unsigned m_>

TensorGeneric<n_,m_> operator-	(	const TensorGeneric< n_, m_ > &	,
		const TensorGeneric< n_, m_ > &
	)

friend

return t1+t2

template<unsigned n, unsigned m>

template<unsigned n_, unsigned m_>

TensorGeneric<n_,m_> operator/	(	const TensorGeneric< n_, m_ > &	,
		double	s
	)

friend

scale the tensor by a factor 1/s

template<unsigned n, unsigned m>

template<unsigned n_, unsigned m_>

TensorGeneric<n_,m_> transpose ( const TensorGeneric< m_, n_ > & )

friend

returns the transpose of a tensor (same as transpose())

Member Data Documentation

template<unsigned n, unsigned m>

double PLMD::TensorGeneric< n, m >::d[n *m]

private

The documentation for this class was generated from the following file:

tools/Tensor.h

Public Member Functions

Static Public Member Functions

Private Attributes

Friends

Detailed Description

template<unsigned n, unsigned m> class PLMD::TensorGeneric< n, m >

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Member Data Documentation

template<unsigned n, unsigned m>
class PLMD::TensorGeneric< n, m >
